Please contact your local store to order this item. Due to its weight, we cannot correctly quote a freight shipping cost online. Contact your local store for more info.

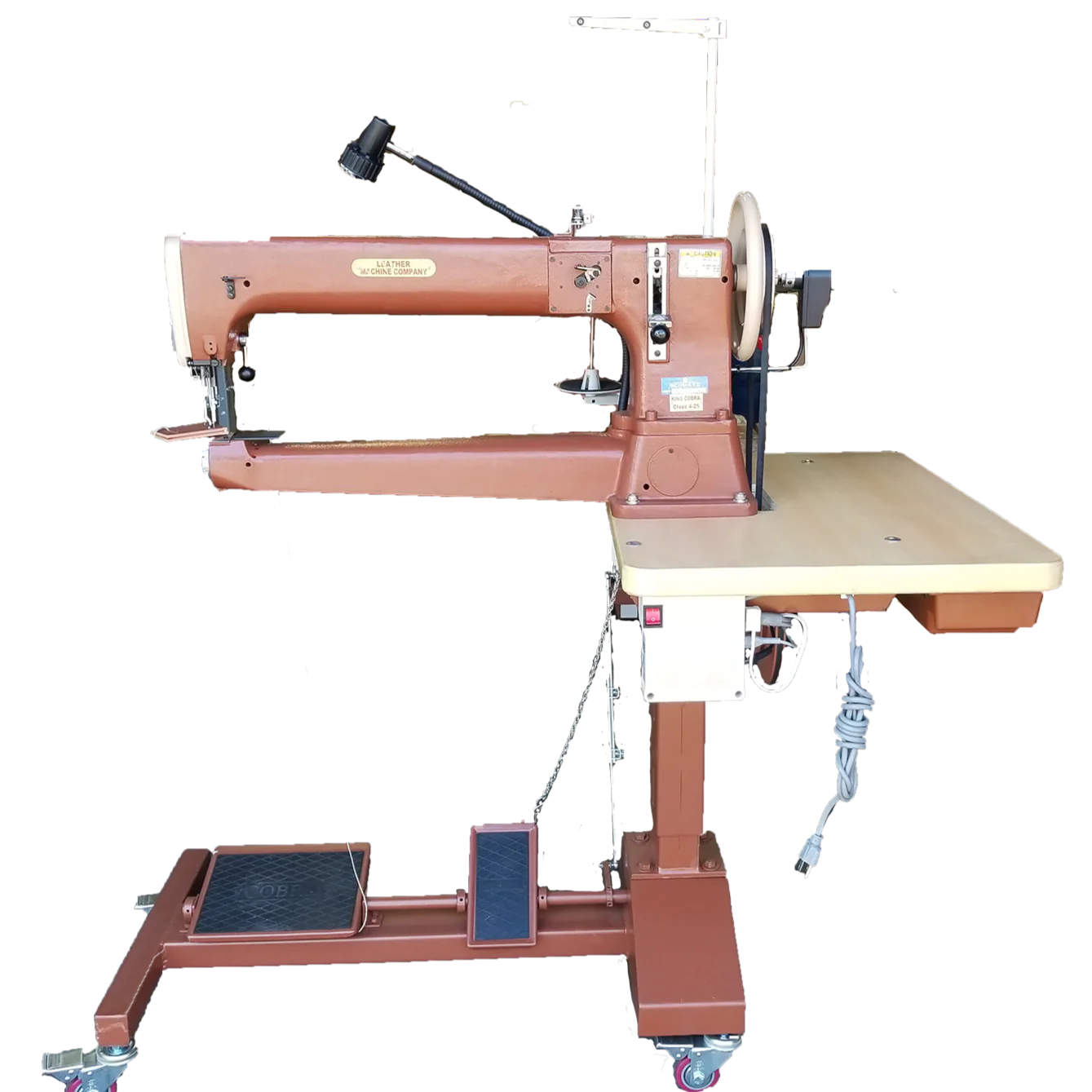

Introducing the King Cobra Class 4-25 the newest member of the COBRA line of Leather Stitchers. This machine sews from 6 oz. to 7/8″ (2.4 mm to 22.2 mm) leather.

The King COBRA 4-25 features the new and innovative Electronic Positioning System (EPS). The EPS comes with the Needle Position Motor, Electronic Synchronizer, and the Power Handwheel.

The EPS is a labor-saving device that saves time, money and at the same time, gives consistent, precise stitching.

The EPS, allows the needle to stop up, or down, 90 degrees corners, back tack, and remove your work without ever having to touch the handwheel.

Legendary Holster Maker, John Bianchi, and Master Craftsman, Matt Whitaker from Frontier Gun Leather say that there are many advantages, including:

* Crucial element to professional products
* A must for complex stitching patterns
* Allows the machine to start and stop without showing a change in the stitch pattern
* We highly recommend the EPS for all types of work

Hall of Fame Saddle Maker, Bob Scott says: “On some applications to achieve perfection, you must be able to sew one stitch at a time, only available with the new COBRA Electronic Positioning System” Check out our Machine Spec Guide to compare this model with other machines and for warranty information.

Features

Sews from 6 oz. to 7/8″ (2.4 mm to 22.2 mm)
Needle Position Motor with Synchronizer
Featuring Needle Up/Needle Down Capabilities
Power Handwheel
25″ Arm
794, 7×4, 7×3 Needle Systems
Best and most versatile presser feet in the business
Thread Sizes from 69 to 415
Triple Feed Mechanism
Reverse stitches in same holes
Stitch Length from 3-22 stitches an inch
Sews leather, pads, blankets, webbing, canvas, upholstery, bio-plastics
28 LED Super Beam Lamp
Heavy Duty Speed Reducer
HD Pedestal with Wheels
Instruction Manual

Specifications

Motor Type: Needle Position Motor with Synchronizer, Servo 110v, >4/5hp, 600w, 0-4000rpm
Arm Style: Cylinder Arm
Throat Size: 25 in. (63.5 cm)
Leather Thickness Limit: 6 oz. - 56 oz. (3/32 in. - 7/8 in. or 2.4 mm - 22 mm)
Table Size: Work Bed - 29.75 x 14.5 x 1.5 in. (75.57 x 36.83 x 3.81 cm)
Dimensions: 48 x 40 x 70 in. (121.92 x 101.6 x 177.8 cm)
Weight: 393 lbs. (178.26 kg)

Compatibility

Thread Size: 69-415
Needle System: 794S, 794D, 794LR, 794H, Round #18-27, Triangular/Diamond
#21, #23-#27
Bobbins

Machines

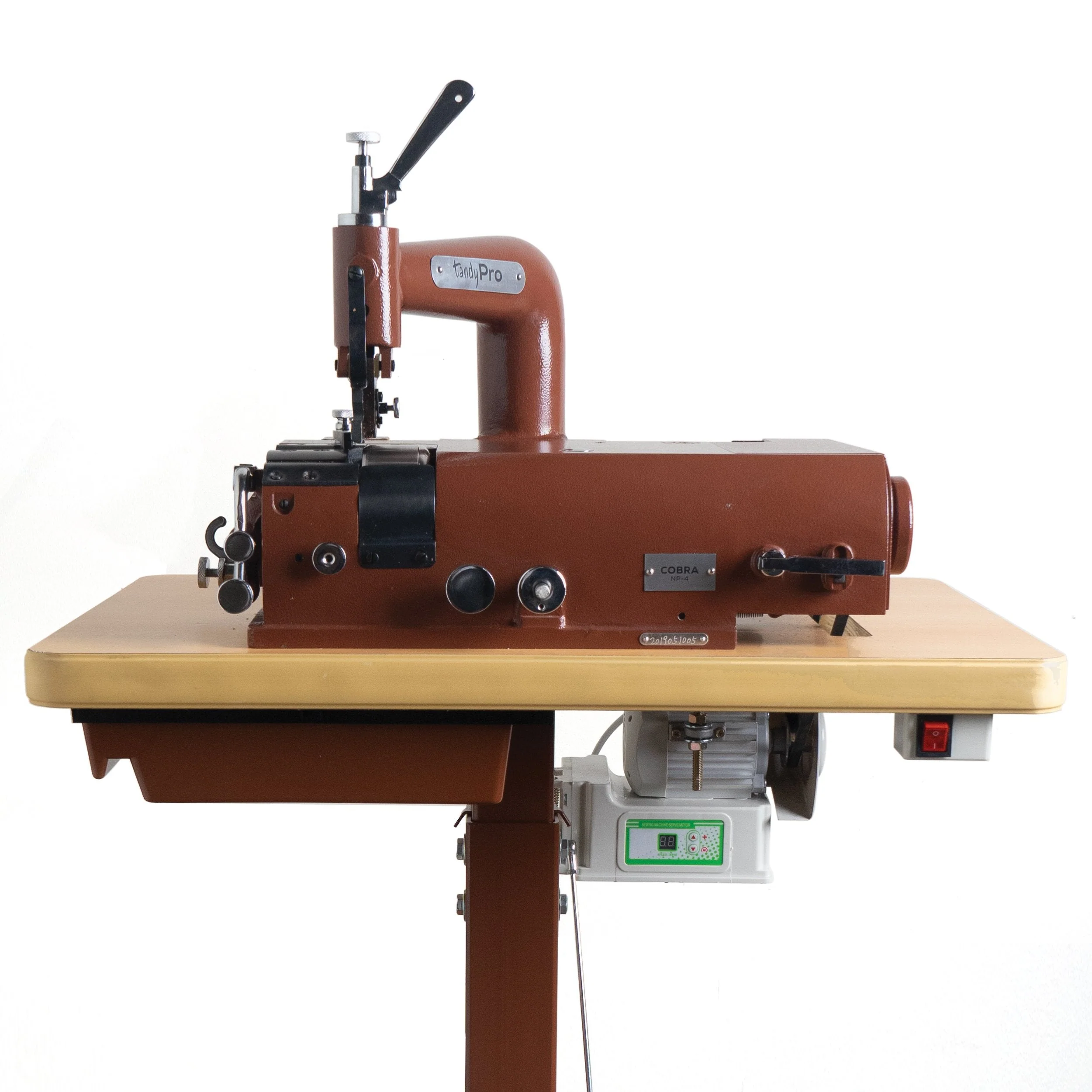

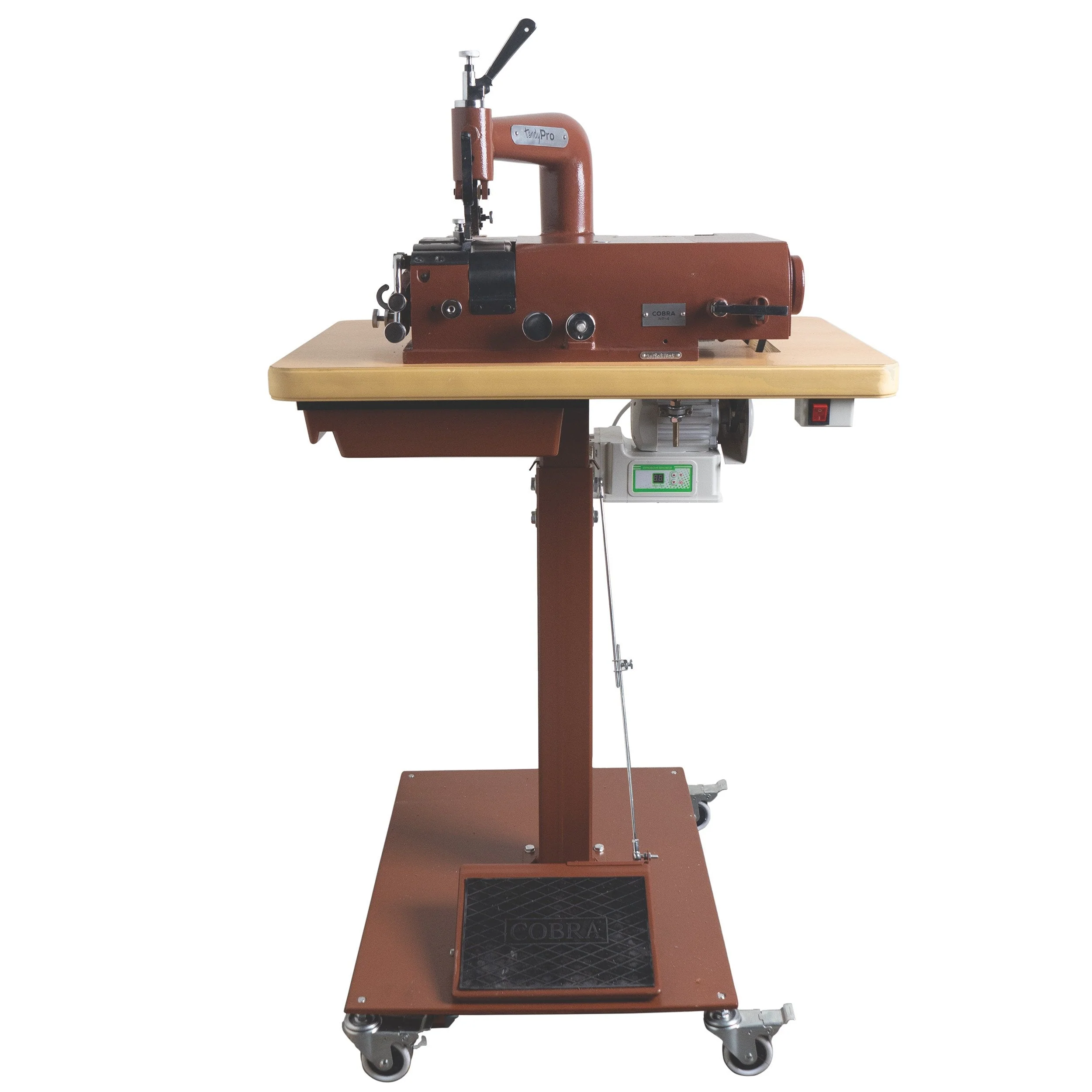

TandyPro® NP4 Skiving Machine
